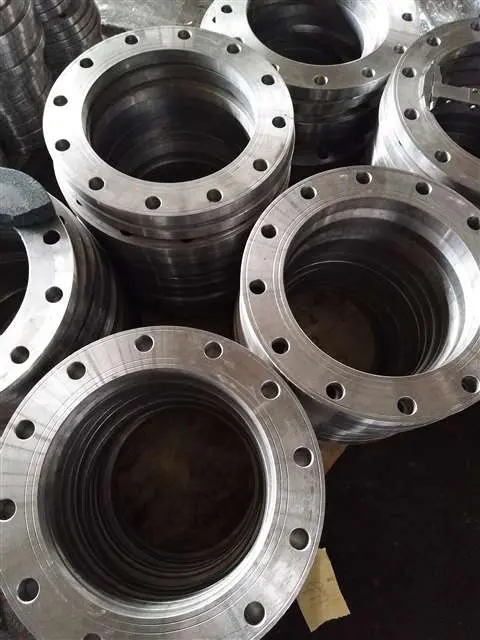

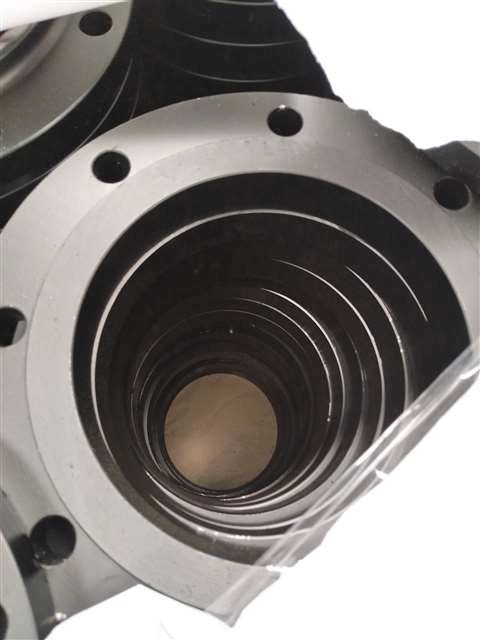

DIN 2502 PN16 Plate flange

We have extra than 15 years’s experiences on manufacturing and export of all types of plate flange,flat flange,slip on flange, welding neck flange,long welding neck flange,blind flange,socket welding flange,threaded flange, screwed flange, lap joint flange. Company produces carbon metal flanges in accordance to the strandard of ANSI/ASME,DIN,JIS,BS,GB,SH. We can additionally produce Non-standard flanges as per the drawings and samples supplied by means of customers. At existing we have received ISO9001:2000 Quality System Certificate. Our merchandise are extensively used in many key-building engineering in China, and in most cases exported to USA,Germany,Canada,Spain,Japan,Middle East,Southeastern Asian international locations and regions.


Contact Now E-Mail Telephone
Product Details

A flanged joint is composed of separate and indepen

dent, although interrelated components: the flanges,
gasket, and bolting, which are assembled by another
influence, the assembler. Proper controls must be exer
cised in the selection and application for all these ele
ments to attain a joint that has acceptable leak tightness.
Special techniques
1. Standard:DIN2502,DIN2503,DIN2527,DIN2566.DIN2573,DIN2576; DIN2633 ; DIN2632; DIN2631;DIN2566
2. Type:Plate flange, Threaded, Irrigation,Blind, Lap Joint flange.
3. Pressure Class:PN6;PN10; PN16; PN25; PN40;
4. Dimension:DN10-2000
5. Surface Treament:Anti-rust oil; Yellow paint; Black paint;Hot dip Galavnised; Zinc.
6. Raw Material:RST 37.2; P245GH ; S235JR
7. PackingWooden Case, Pallet.
8. Payment:L/C, T/T, Western Union, PayPal
9. Delivery time:30 ~60 days after confirm the order

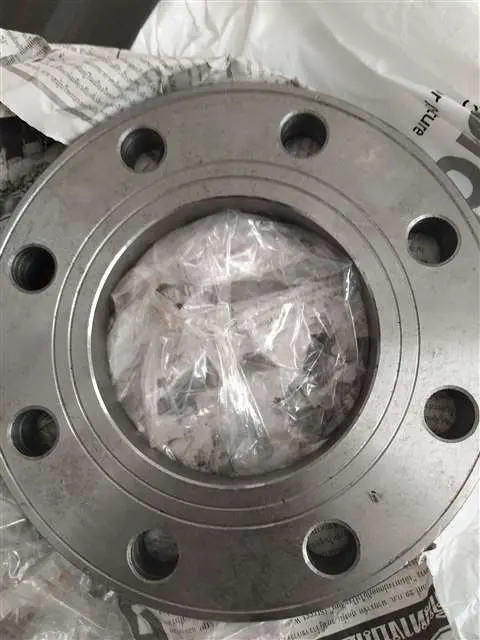

照片 546.jpg
1. Standard:DIN2502,DIN2503,DIN2527,DIN2566.DIN2573,DIN2576; DIN2633 ; DIN2632; DIN2631;DIN2566
2. Type:Plate flange, Threaded, Irrigation,Blind, Lap Joint flange.
3. Pressure Class:PN6;PN10; PN16; PN25; PN40;
4. Dimension:DN10-2000
5. Surface Treament:Anti-rust oil; Yellow paint; Black paint;Hot dip Galavnised; Zinc.
6. Raw Material:RST 37.2; P245GH ; S235JR
7. PackingWooden Case, Pallet.
8. Payment:L/C, T/T, Western Union, PayPal
9. Delivery time:30 ~60 days after confirm the order
